Armored Minibus based on Mercedes Sprinter
-
Ballistic protection level
VPAM 7 / VPAM 10
-
Explosion protection
STANAG 4569
-
Certified by
iABG
-
Qualified by
Lloyd's Register
-
Certified to standard
ISO 9000

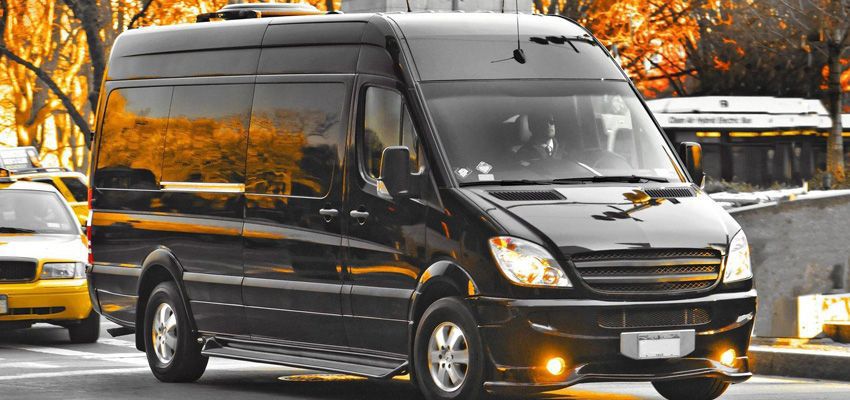

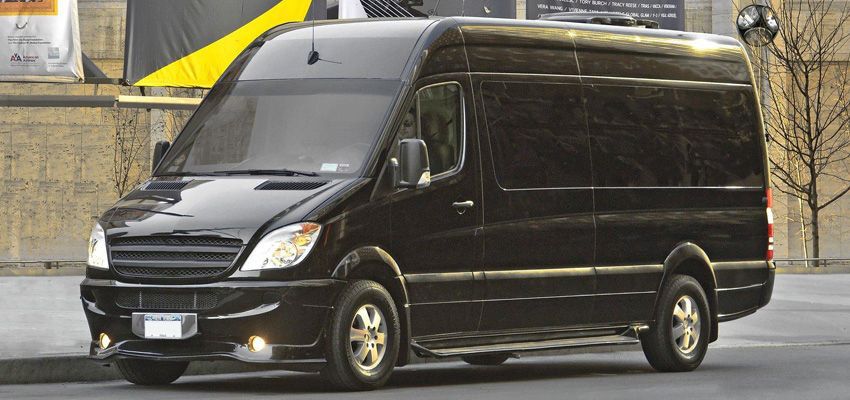

Aurum-Security minivan based on Mercedes-Benz Sprinter is designed primarily for business. It is an excellent solution for a mobile office which allows working or taking a rest during safe transportation.

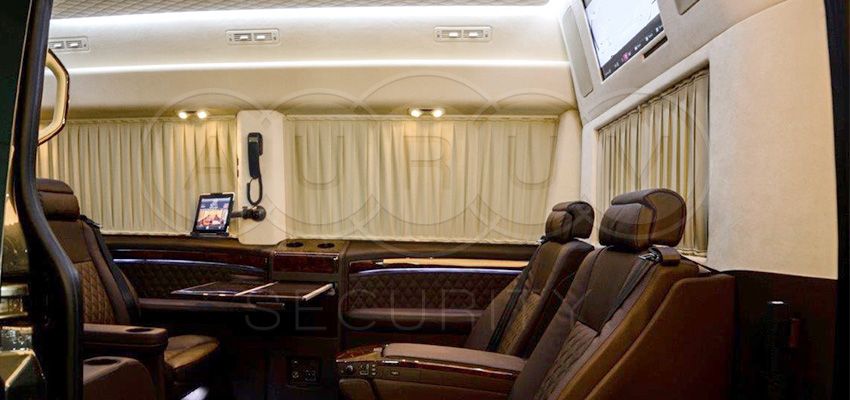

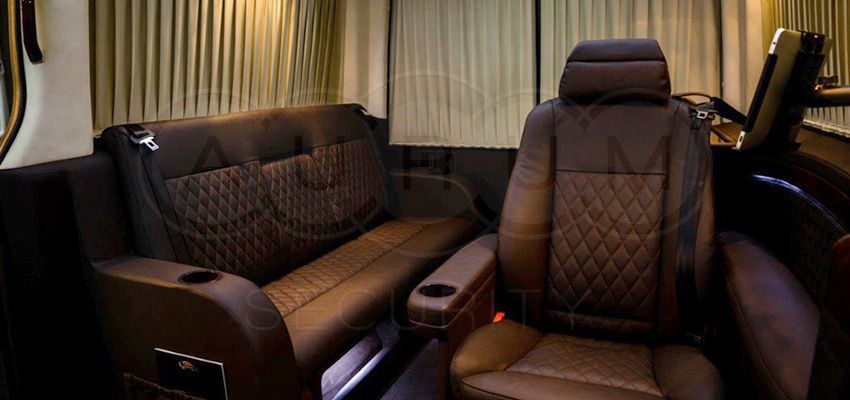

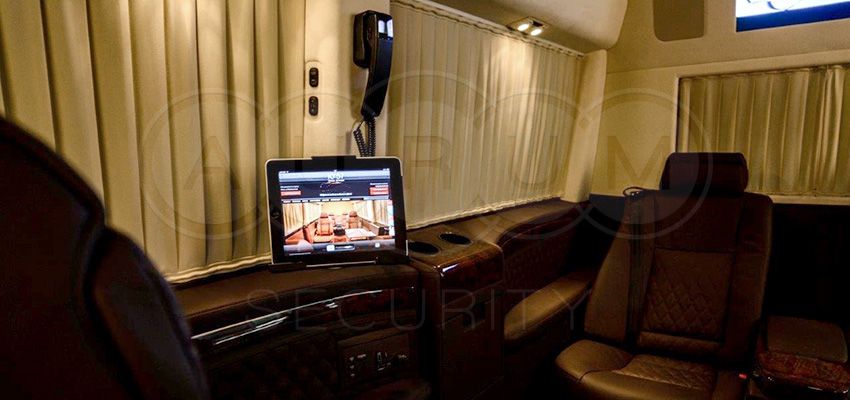

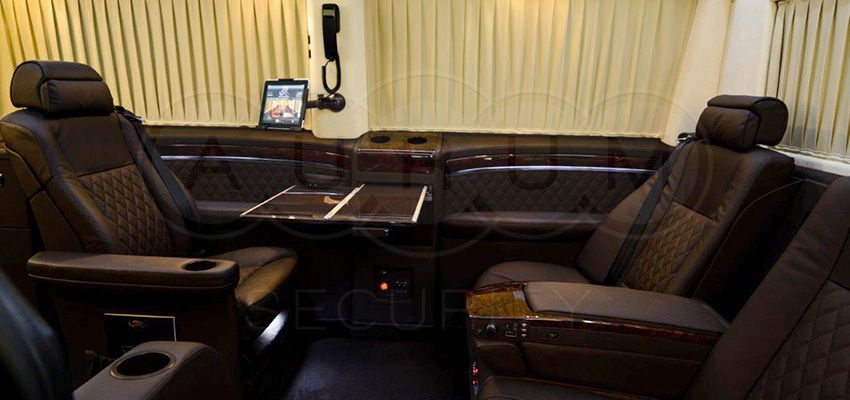

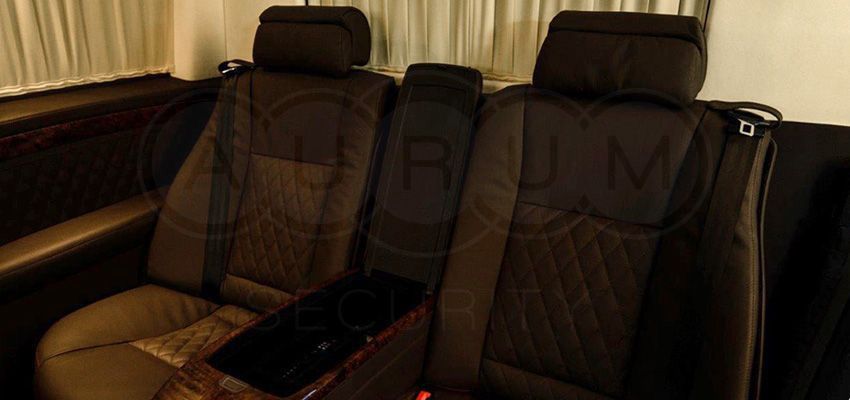

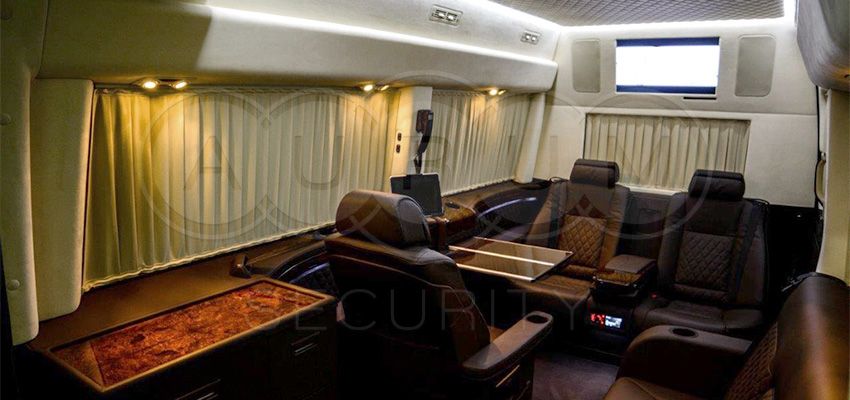

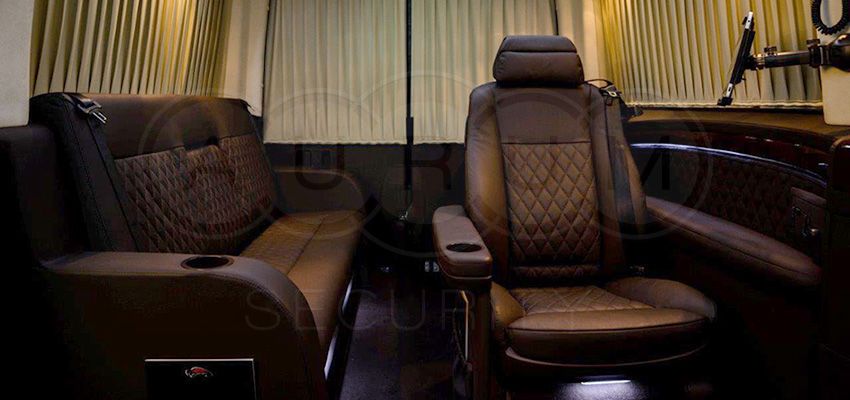

The protection level can vary from B4 (hand-guns) to B7+ (armor-piercing bullets from a sniper rifle).The interior can be customized according to the requirements.
Ultimate luxury combined with upmost security – the armored minivan by Aurum Security based on a Mercedes Sprinter is a well-known vehicle which name speaks for itself.
This protection level is normally possible only for military vehicles, yet our vehicles retain comfort and inconspicuous look of civil SUVs. Please refer to the ballistic protection charts and blast protection charts for more details.
- Opaque areas including the roof provide protection according to VPAM APR 2006, level 10 / Stanag 3–. That includes all soft core bullets 5.56, 7.62, 9 and 12.7 mm and all wide-spread hard-core and armor-piercing bullets: 7.62×39 (BZ) Kalashnikov API, 7.62×51 (P80) AP, and 7.62×54 (B32) Dragunov API, from any angle (not only 45° or 90° as per BRV 1999).
- All transparent areas have thickness 80 mm and provide protection according to VPAM APR 2006, level 10 / Stanag 3–. That includes multiple;shots of all soft core bullets 5.56, 7.62 and 9 mm and all wide-spread hard-core and armor-piercing bullets: 7.62×39 (Kalashnikov BZ), 7.62×51 (P80) AP, and 7.62×54 (B32) Dragunov API, from any angle (including 90°).
- 3 × DM51 grenades under the floor
- 3 × DM51 grenades on the roof
VPAM is the latest European standard for ballistic protection, which is now used to replace the old commonly used classification levels from B1 to B7:
Core 4.1, Hardness 65
Core 4.6, Hardness 60
Core 5.3, Hardness 63
Our armored vehicles have no penetration zones
Our company is not only one of the few companies that use certified materials in armoring, but also the only one in the world that has fully certified SUV to the highest protection level for civilian vehicles VPAM VR10.
During the VR certification our vehicle was tested with 550 shots:
Engineering & Technology
Armored Capsule
- The design is fully certified and tested as a complete system (not just individual panels).
- Manufactured from a single, continuous armored steel plate.
- All critical areas, including the floor and roof, are fully protected.
- Completely sealed — no weak points.
- Laser-welded or overlapping joints.
Glass
The glazing is 80 mm thick and provides protection in accordance with VPAM APR 2006 (Level 10 / STANAG 3). All windows are multi-layered, including splinter-resistant polycarbonate, ensuring maximum visibility and protection without distortion. Our bonding process guarantees full adhesion to the frame and eliminates the risk of gap formation.
Wheels
Equipped with run-flat tires that remain functional even after complete pressure loss. Combined with reinforced rims and inserts, these systems allow continued driving for up to 50 km at speeds of up to 80 km/h, even with a completely flat tire.
Upgraded Suspension and Braking System
The suspension and braking system are fully upgraded to support the increased weight of the armor without compromising ride quality. Components are recalibrated or replaced to ensure optimal performance and durability under load. The enhanced systems provide safety even during evasive maneuvers.
Our vehicles provide the maximum level of protection available for civilian vehicles.
