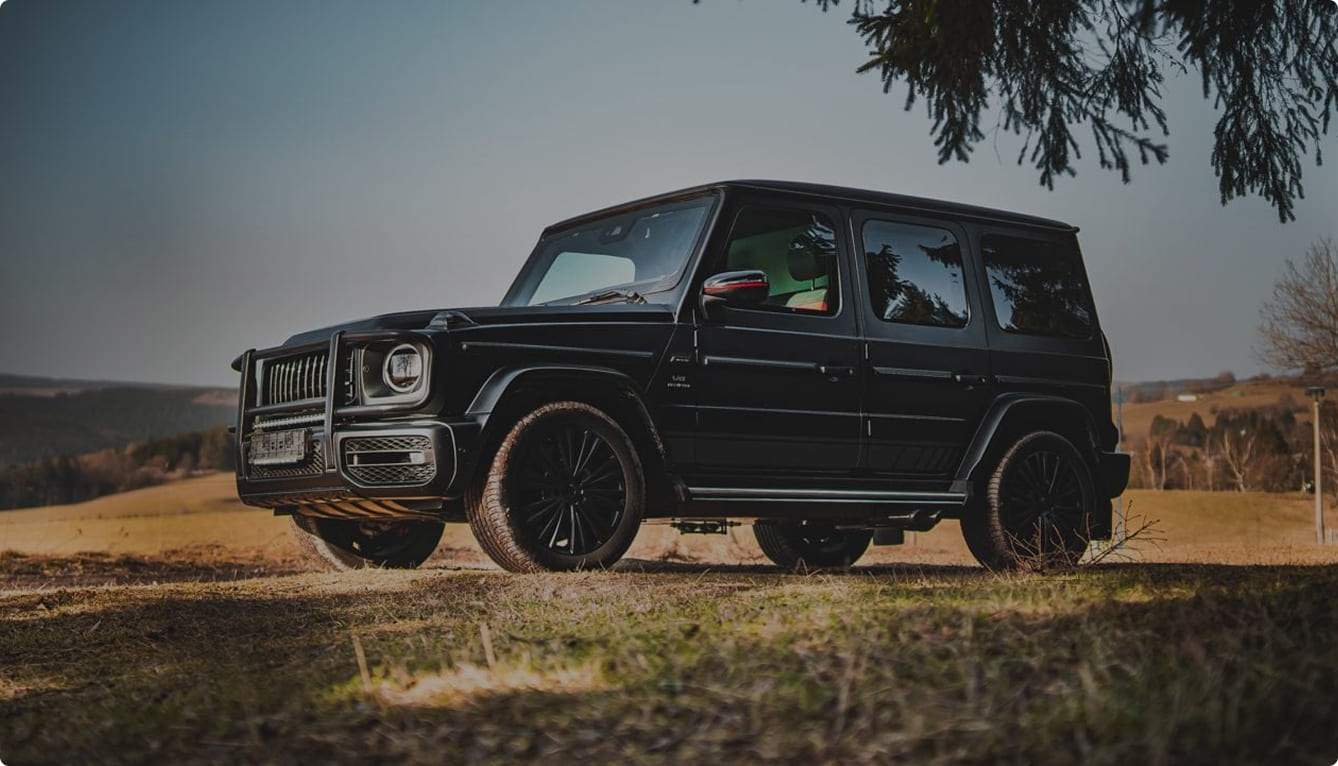

Armored Vehicle Based on Mercedes G-Class

Ballistisches Schutzniveau
up to VPAM9 (B7)
Explosionsschutz
STANAG 4569
Zertifiziert durch
iABG
Qualifiziert durch
Lloyd's Register
Zertifiziert nach Standard
ISO 9000

Fahrzeugspezifikationen

Schlüsselspezifikation

Bezogen auf Mercedes G-Class

Schutzklasse VPAM7 / VPAM7-9 / VPAM8 / VPAM9

Explosionsschutz STANAG 4569

Glasschutz VPAM7 / VPAM 9 / VPAM8 / VPAM9

Tragfähigkeit up to 1000 kg

Leistung

Beschleunigung auf 100 km/h 12 sec.

Kraftstoffverbrauch (mit voller Klimaanlage):

Benzinmotor 30-34 l/100 km

Dieselmotor 24-27 l/100 km

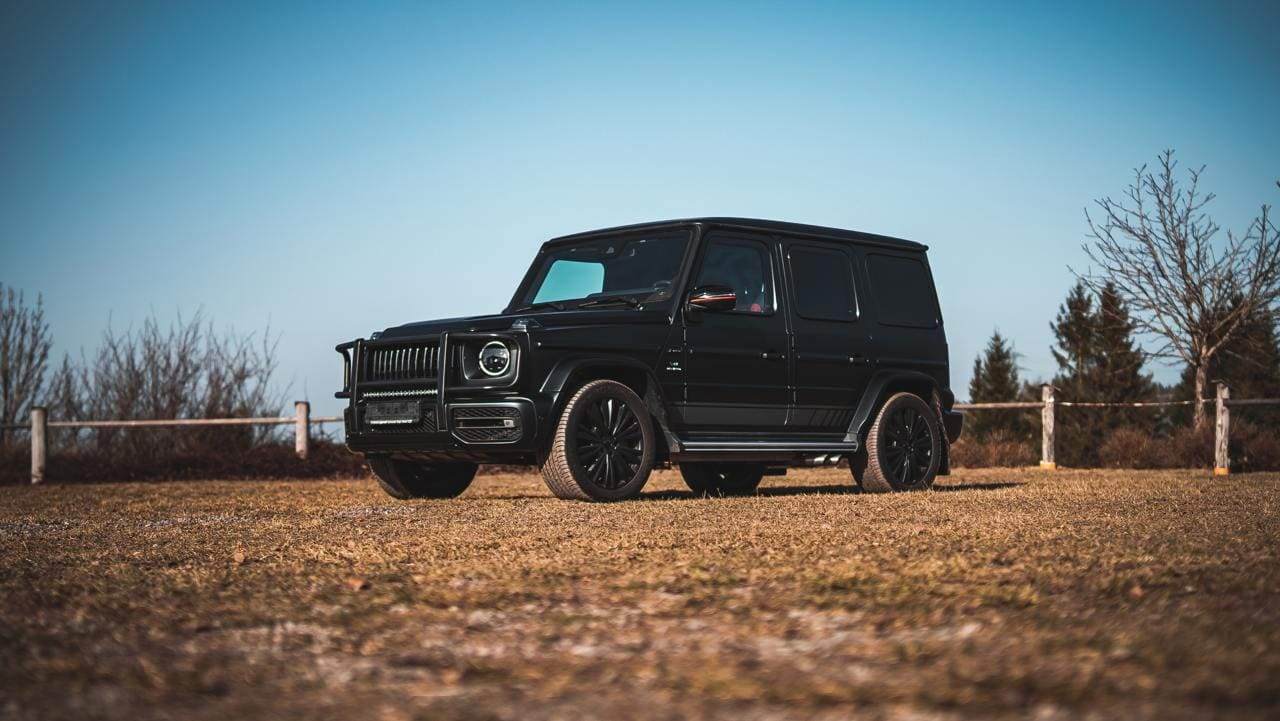

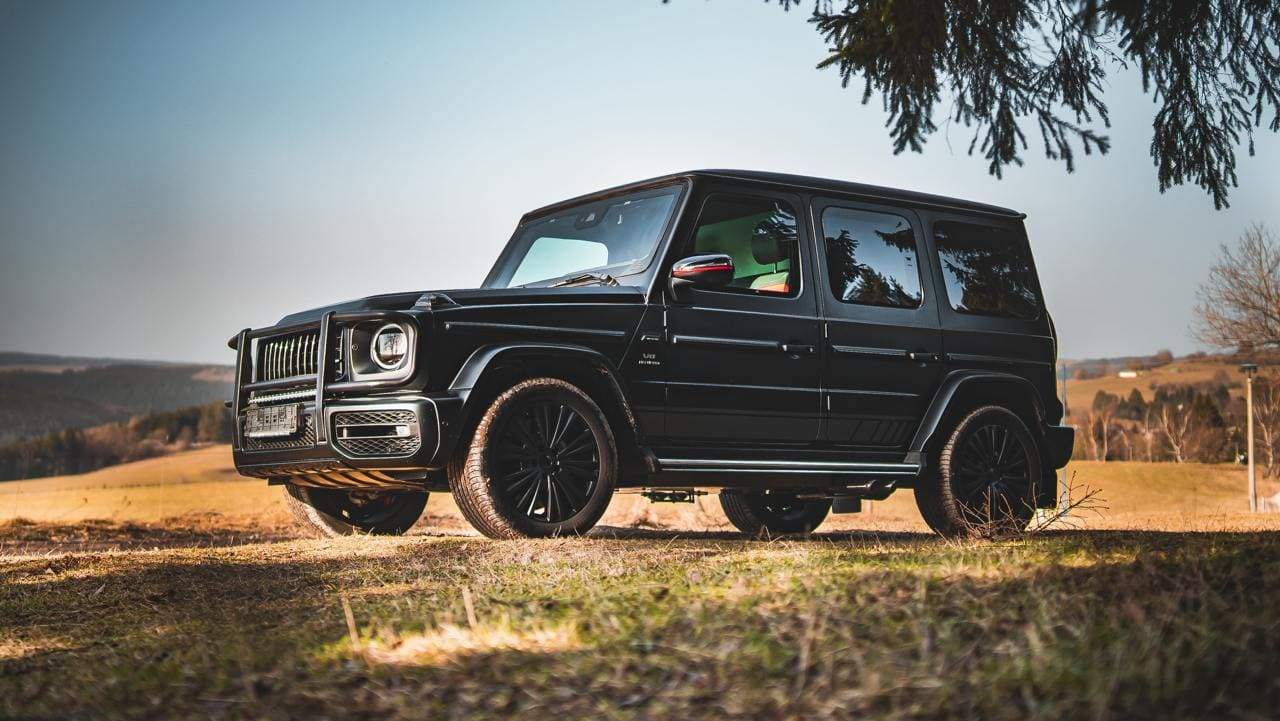

Luxury full-size SUV with maximum protection

The armored vehicle based on Mercedes G-Class is a legendary SUV combining iconic design, outstanding off-road capability, and a high level of ballistic protection.

It is designed for clients who require maximum security, premium comfort, and confidence in all driving conditions.

Reinforced body elements, ballistic glass, and an upgraded chassis provide reliable passenger protection while maintaining dynamic performance and precise handling.

The armored vehicle based on Mercedes G-Class is the perfect combination of status, power, and security.

Ballistic protection

Armor, including the roof, provides protection in accordance with VPAM APR 2006, Level 10 / STANAG 3-. This includes all soft-core bullets in calibers 5.56, 7.62, 9, and 12.7 mm, as well as all commonly used hard-core and armor-piercing bullets: 7.62 x 39 (BZ) from a Kalashnikov rifle, 7.62 x 51 (P80) AP, and 7.62 x 54 (B32) from a Dragunov sniper rifle — at any angle (not just 45° or 90° as required by the BRV 1999 standard).
The glass is 80 mm thick and provides protection in accordance with VPAM APR 2006, Level 10 / STANAG 3- — withstanding multiple hits from all soft-core bullets in calibers 5.56, 7.62, and 9 mm, as well as all commonly used hard-core and armor-piercing bullets: 7.62 x 39 (BZ) from a Kalashnikov rifle, 7.62 x 51 (P80) AP, and 7.62 x 54 (B32) from a Dragunov sniper rifle — at any angle, including 90°.

Explosion protection

An IED weighing 15 kg (TNT), placed 2 meters from the side of the vehicle and at a height of 1 meter
3 DM51 hand grenades placed under the vehicle
3 DM51 hand grenades placed on the roof
A DM31 anti-personnel mine placed under the vehicle
Anti-tank mines (6 kg TNT) placed under the wheel (according to STANAG 2a standard) (optional feature)

Additional options

In agreement with the client, we can make numerous additions and improvements that will make this armored vehicle suitable for any task.

All windows can be made operable

Radiator protection

Full protection of the engine compartment

Police siren, communication equipment, winch, etc.

Additional interior options available, including separated seats, premium leather upholstery, rear compartment partition, enhanced sound insulation, and other bespoke interior features.

What does it mean – Ballistic protection level VPAM9?

VPAM9, in particular, is a level within the VPAM scale that indicates the armor can withstand bullets from long rifles, including those with hardened cores.

EN 1063 / EN1522/23

Waffentyp

Kaliber

Art

Masse [g] / Härte [HRC]

VPAM 7

Kaliber.223 Rem. (5,56x45)

ArtFMJ/PB/SCP

Masse [g] / Härte [HRC] 4.0 ± 0.1

Kaliber.308 Win. (7,62x51)

ArtFMJ/PB/SC

Masse [g] / Härte [HRC] 9.55 ± 0.1

VPAM 8

Kaliber7,62 x 39

ArtFMJ/PB/HCI

Masse [g] / Härte [HRC] 7.7 ± 0.1
Core 4.1, Hardness 65

VPAM 9

Kaliber308 Win. (7,62 x 51)

ArtFMJ/PB/HC

Masse [g] / Härte [HRC] 9,45 ± 0,1
Kern 4,6, Härte 60

VPAM 10

Nächste Stufe nach B7

Kaliber7,62 x 54 R

ArtFMJ/PB/HCI

Masse [g] / Härte [HRC] 10,4 ± 0,1
Kern 5,3, Härte 63

Certified materials that are used during the process of armoring our vehicles with VPAM9 (B7) protection level

Armor protection VPAM 9

Opaque areas, including the roof, provide protection according to VPAM APR 2006, level 9. That includes all soft core bullets 5.56, 7.62 and 9 mm and all armor-piercing bullets 7.62 × 39 BZ (Kalashnikov API) and 7.62 × 51 (P80 ), from any angle (including 90 °).

Glass with protection level VPAM 9

All transparent areas have thickness 65 mm and provide protection according to VPAM APR 2006, level 9. That inludes multiple shots of all soft core bullets 5.56, 7.62 and 9 mm and all armor-piercing bullets (Kalashnikov BZ), at any angle (including 90 °).

Our armored vehicles have no penetration zones

Our company is not only one of the few companies that use certified materials in armoring, but also the only one in the world that has fully certified SUV to the highest protection level for civilian vehicles VPAM VR10.

During the VR certification our vehicle was tested with 550 shots:

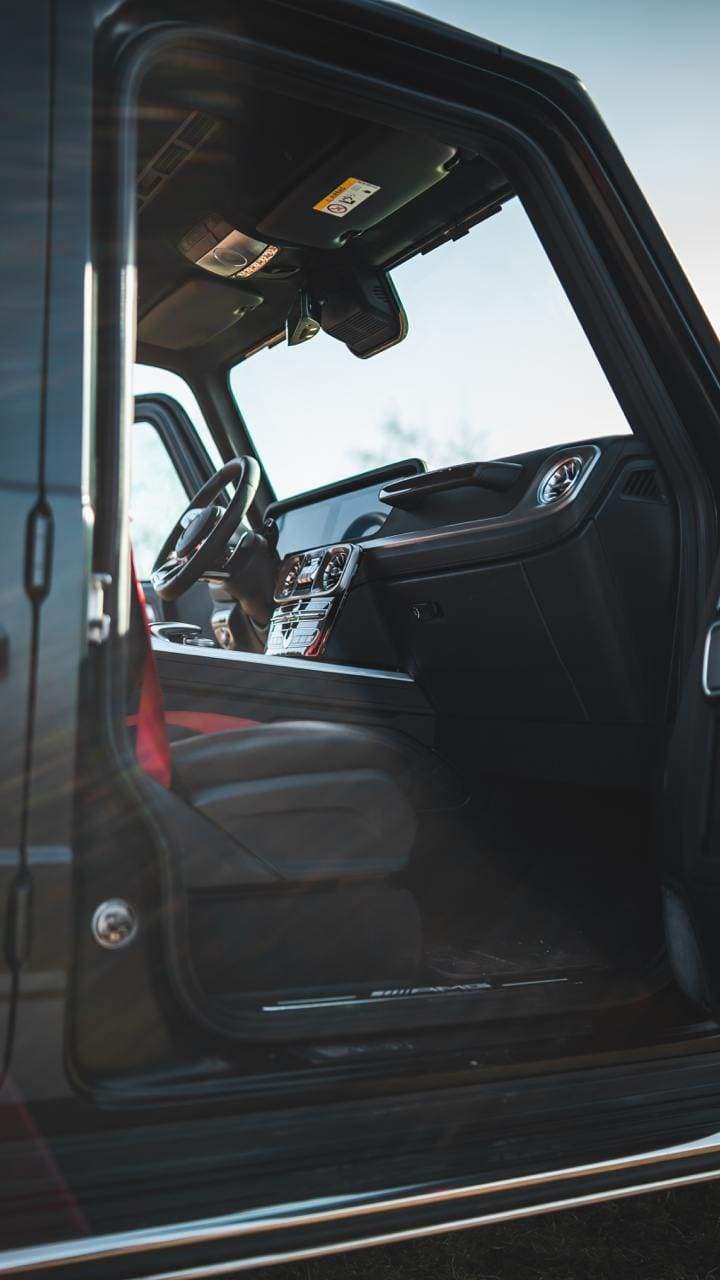

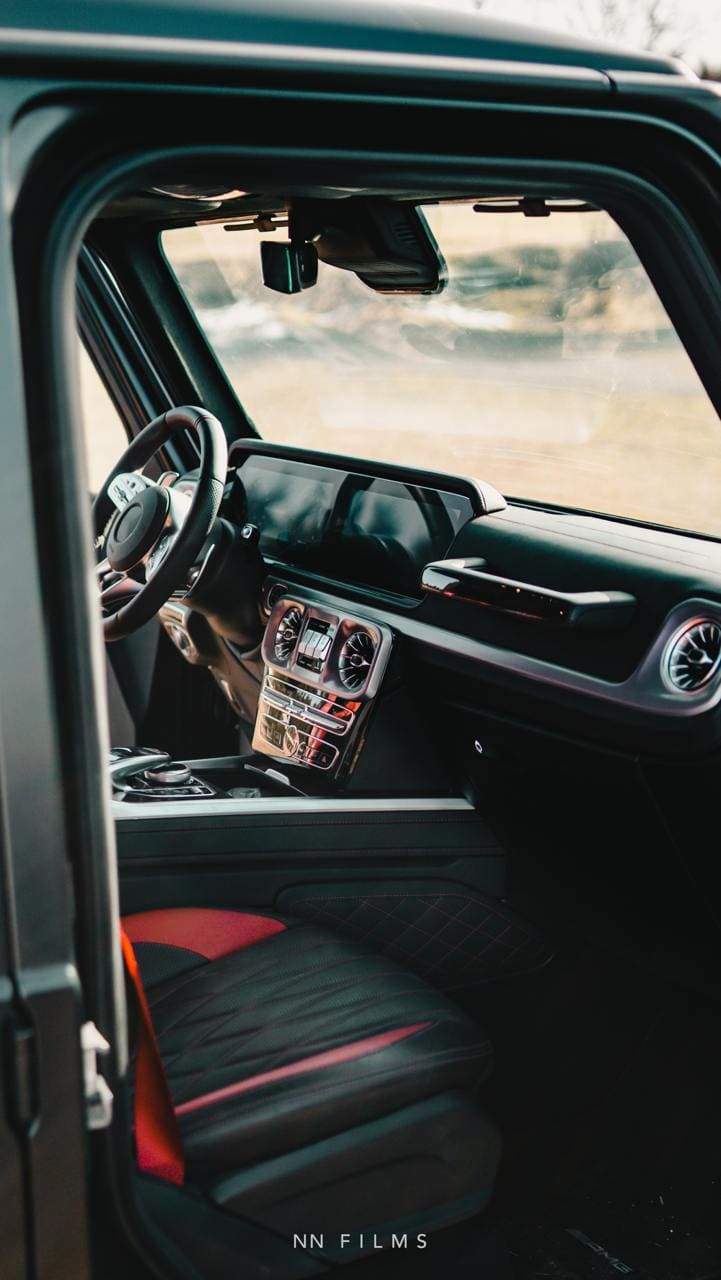

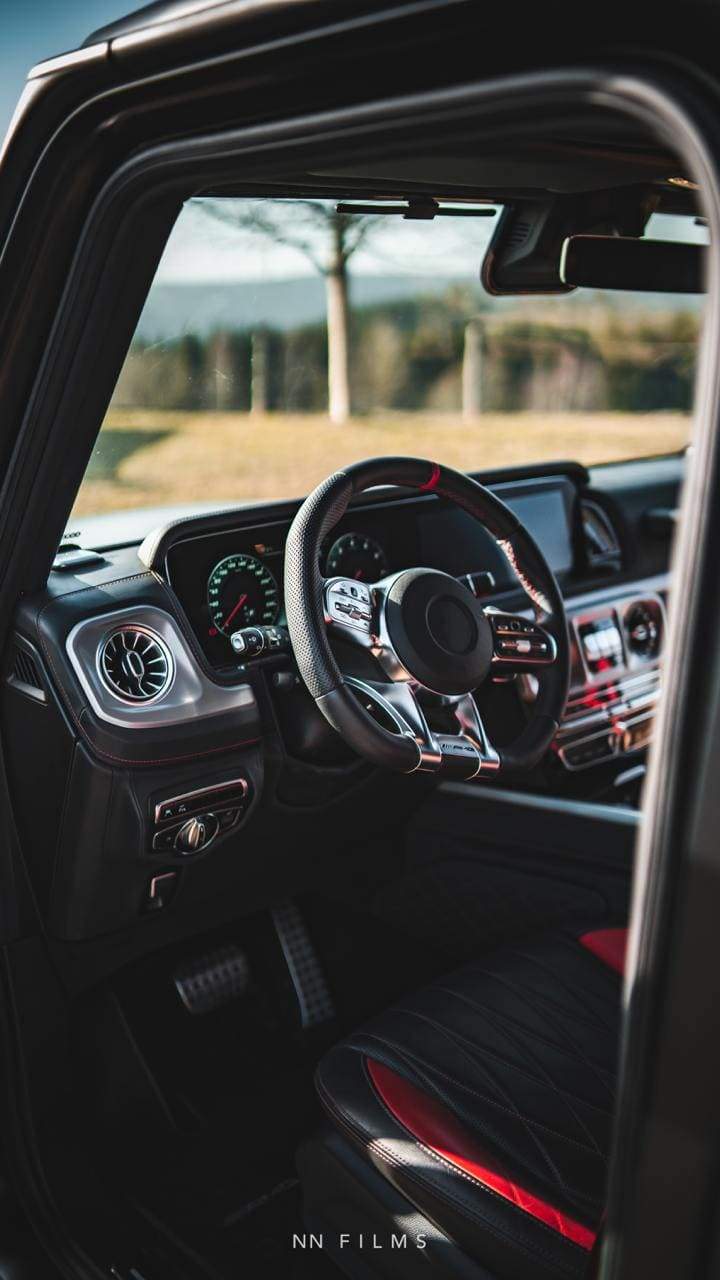

Interior of an armoured vehicle based on Mercedes G-Class

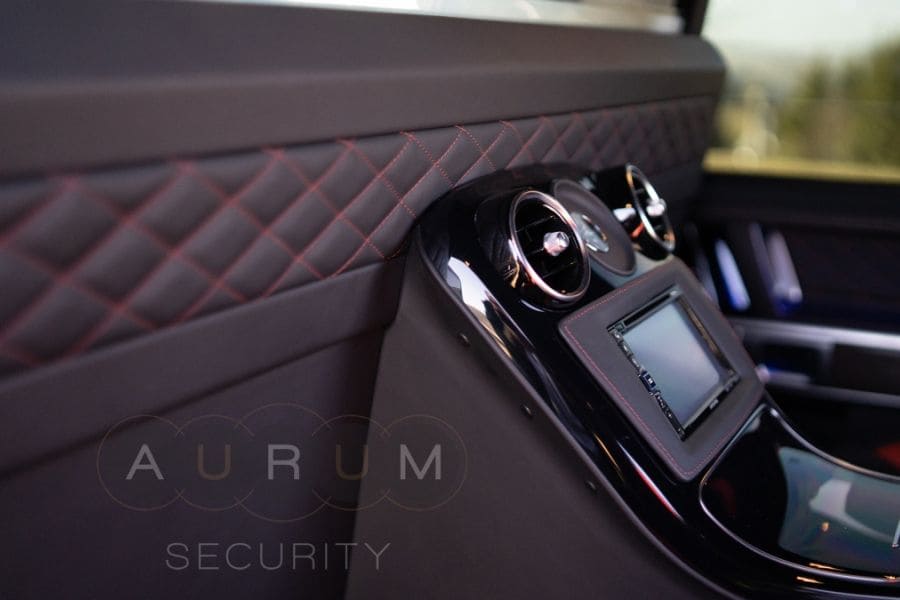

Separate rear seats with console for maximum comfort
Partition wall between front and rear seats with smart glass. It can be soundproof and / or bullet-proof
Wide range of other options

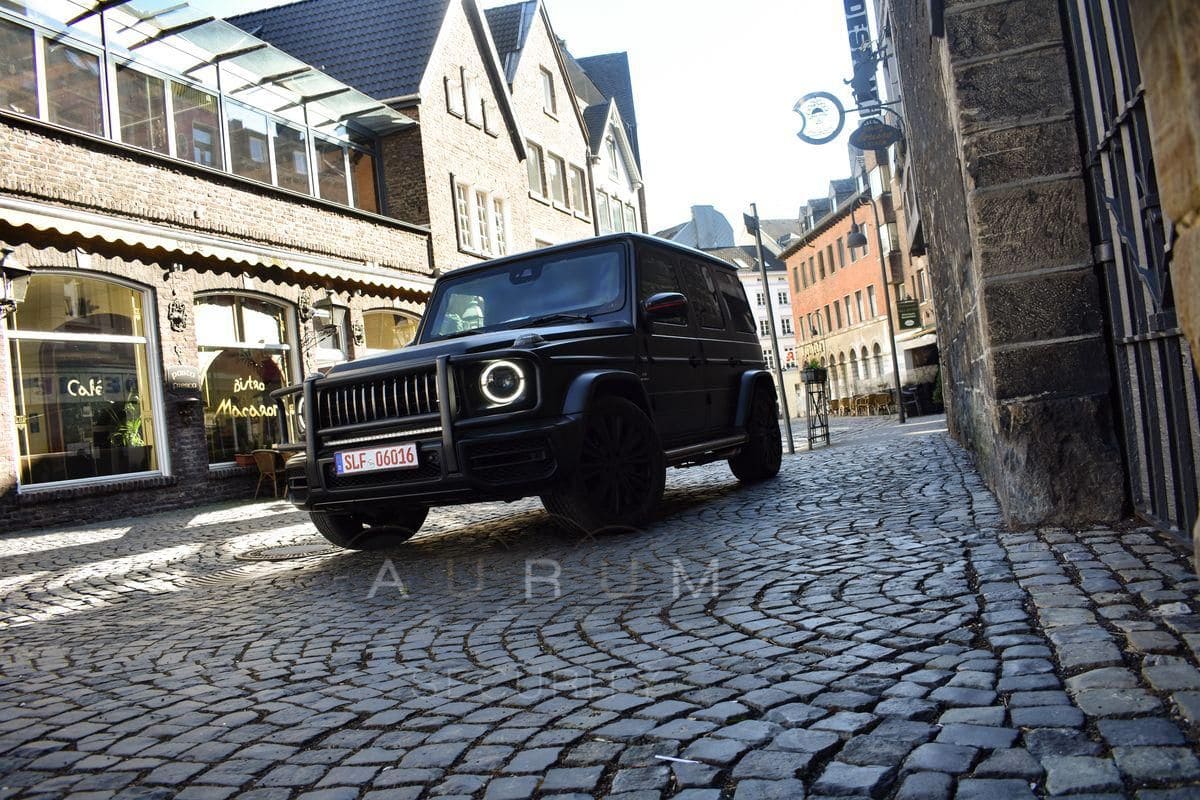

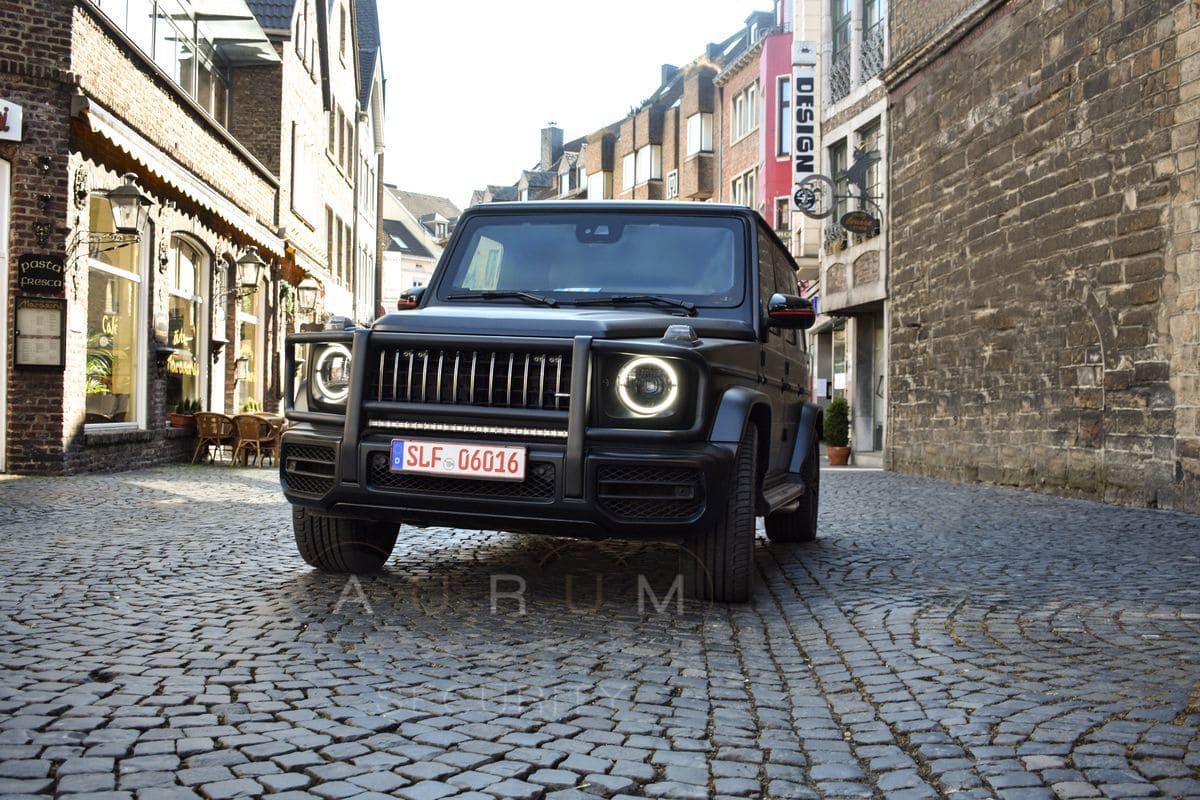

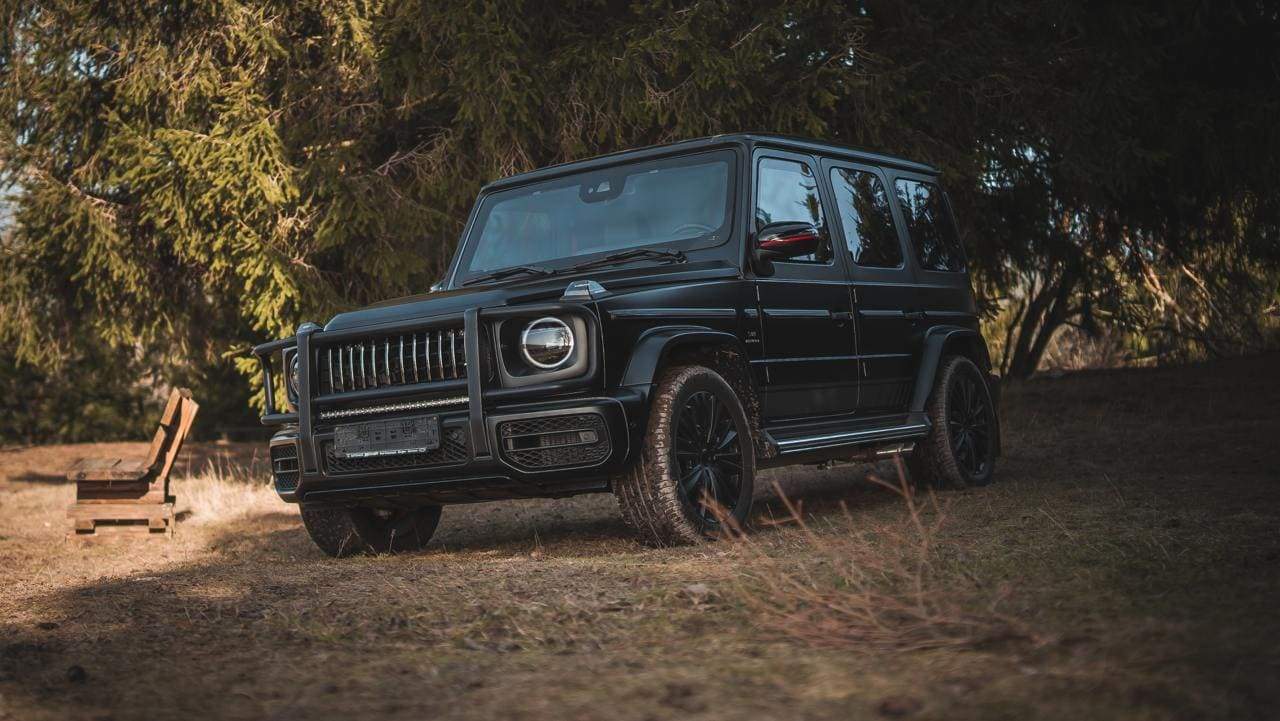

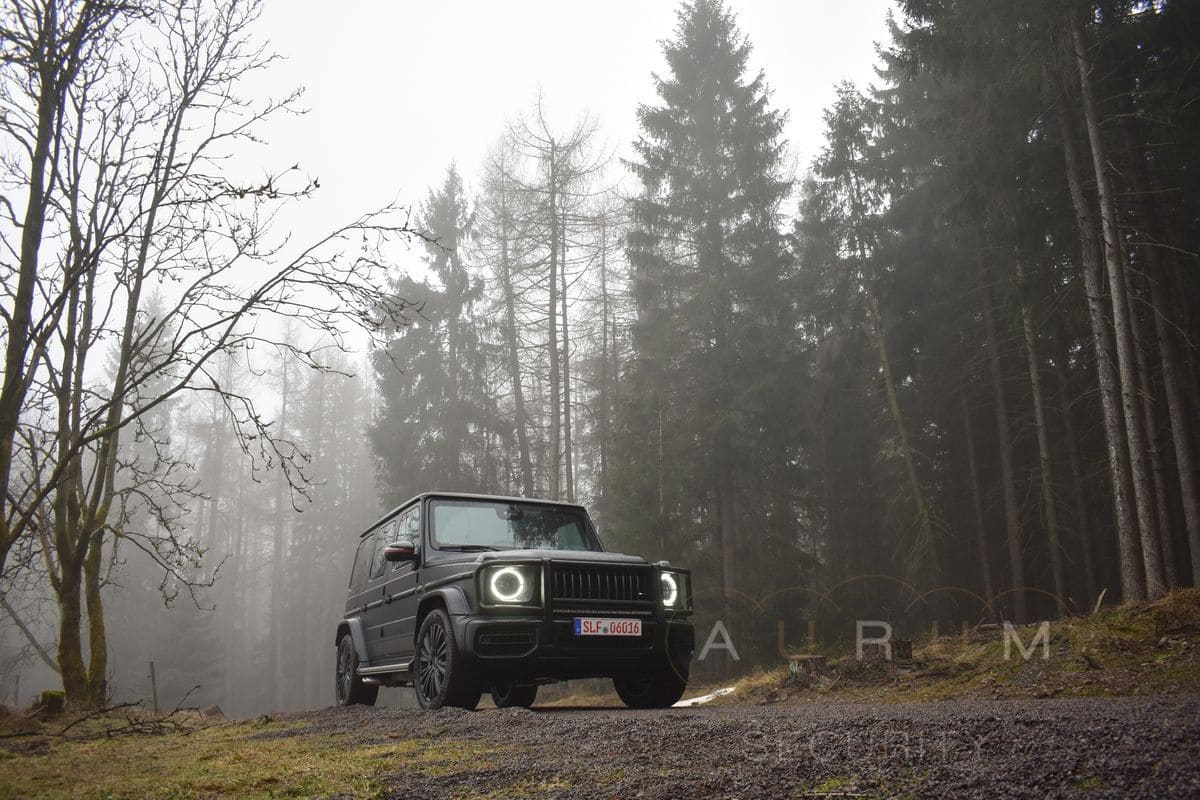

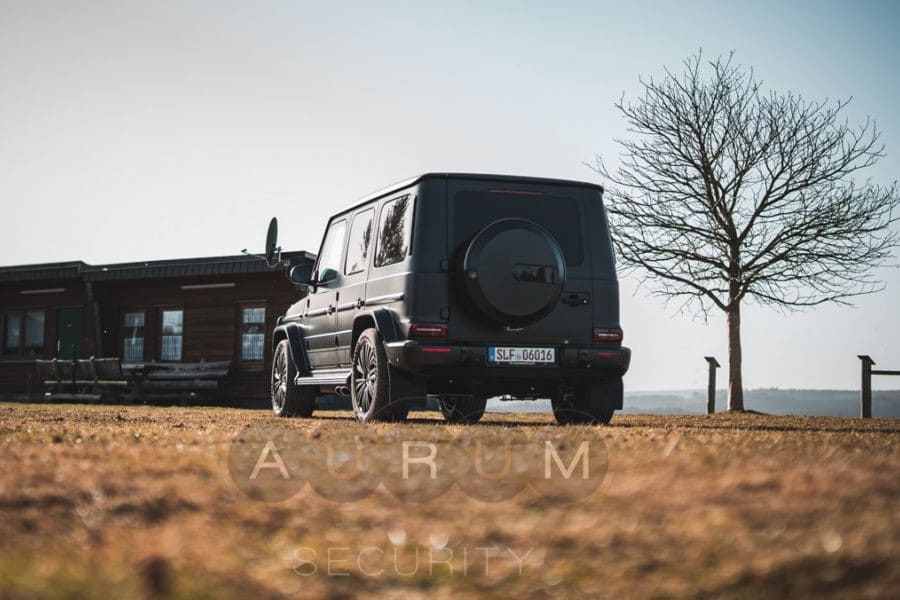

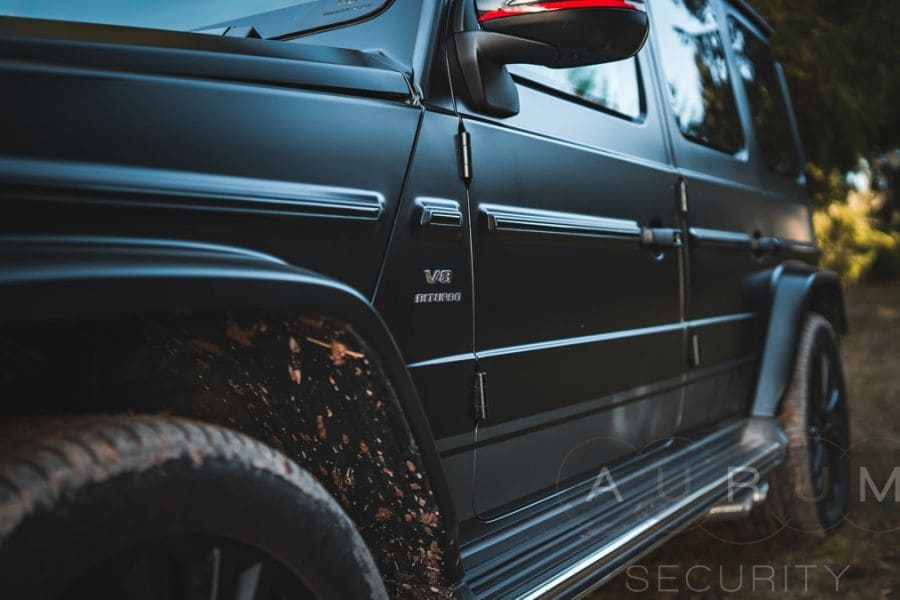

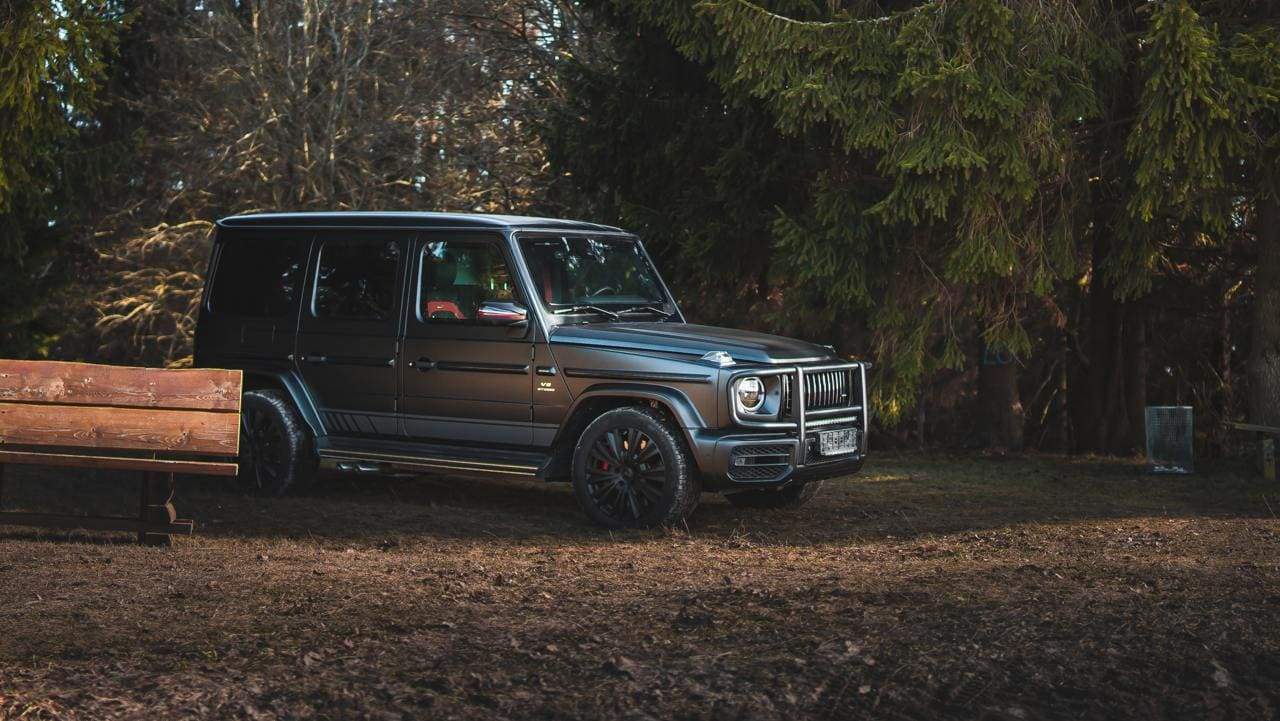

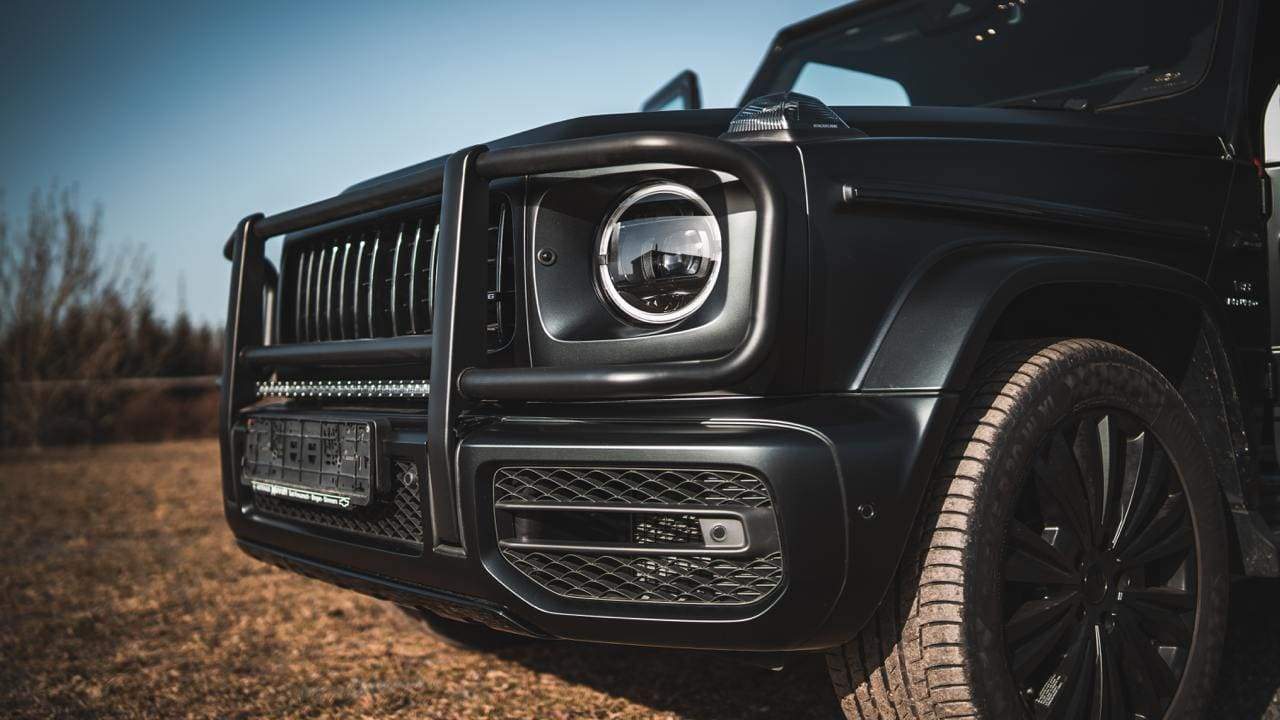

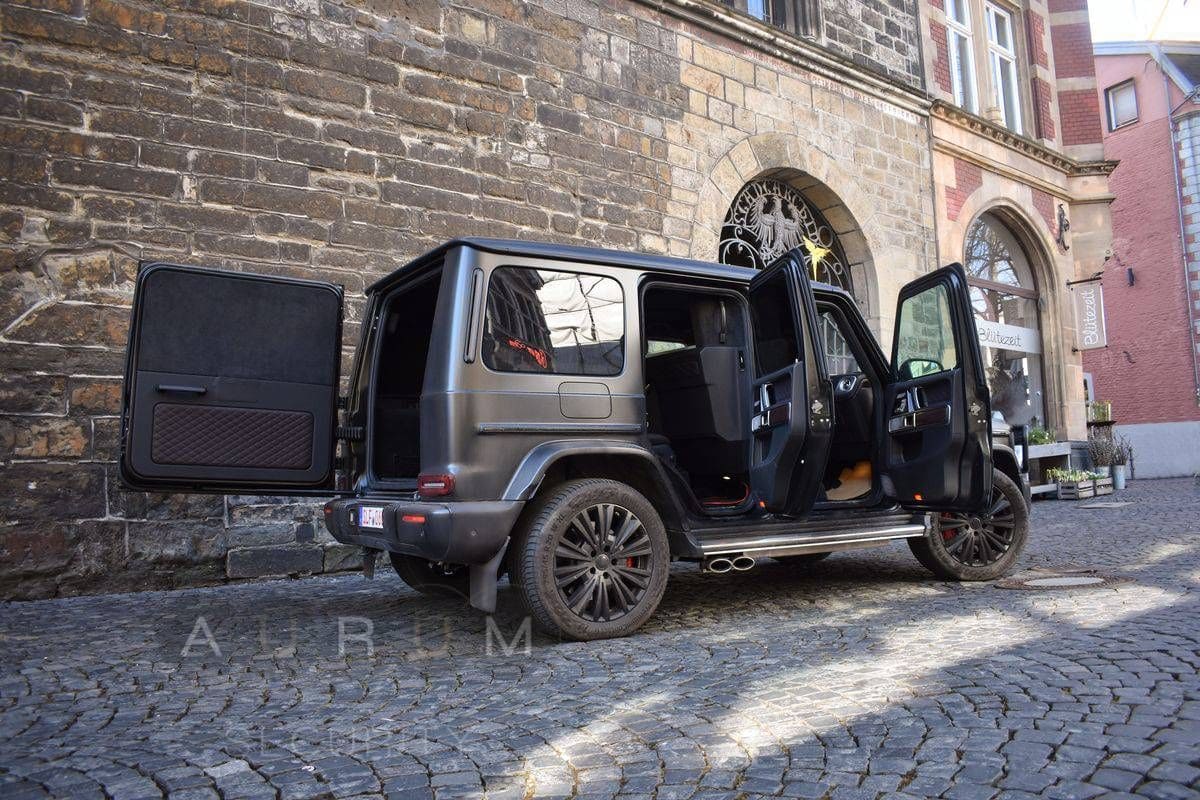

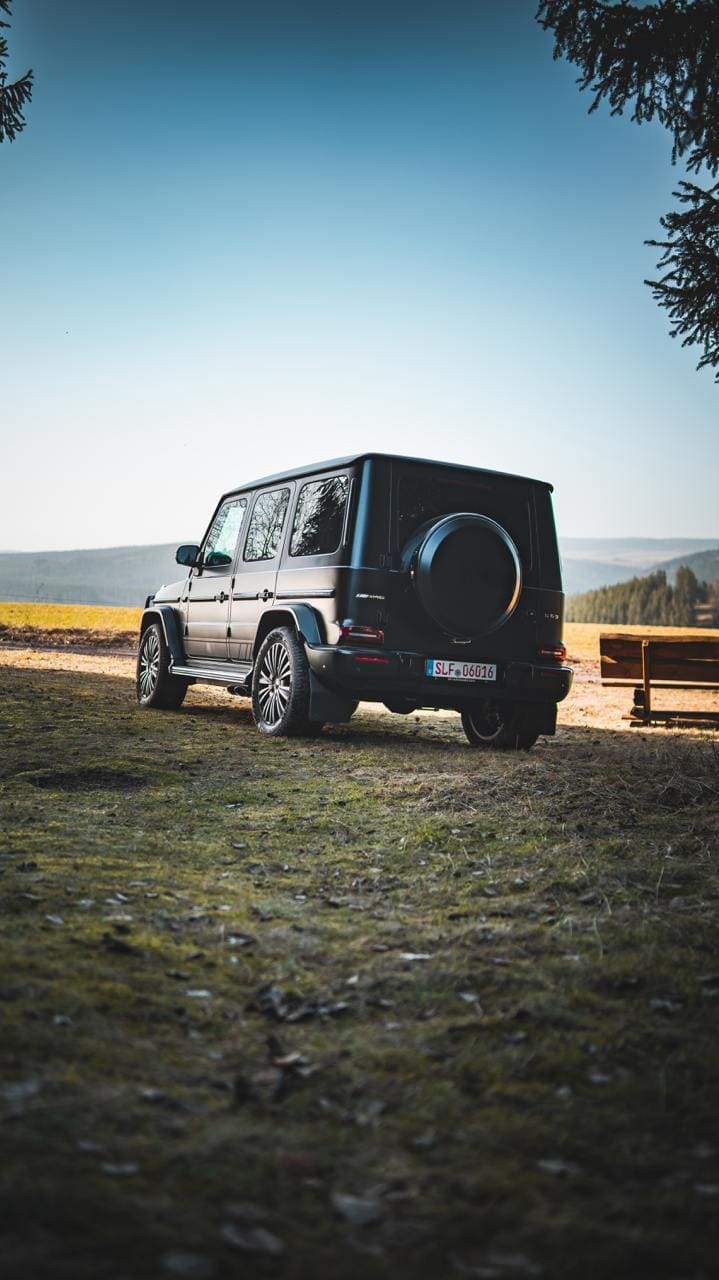

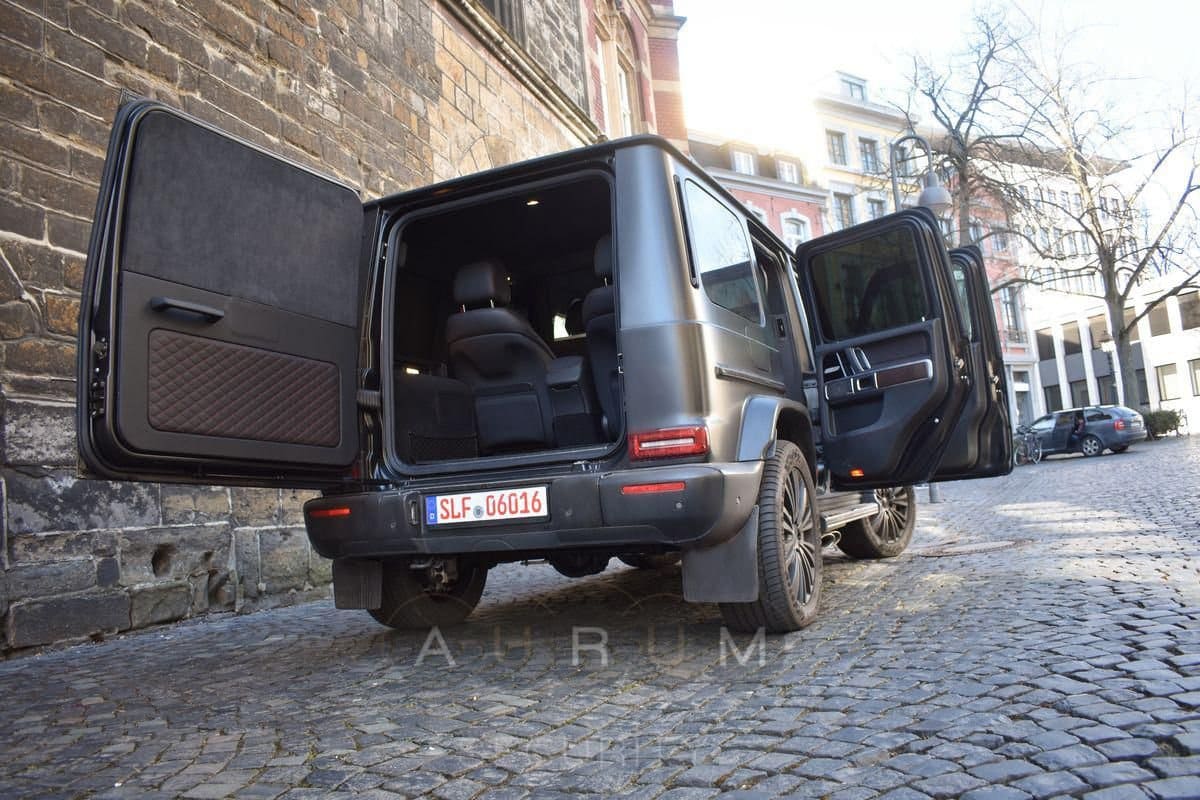

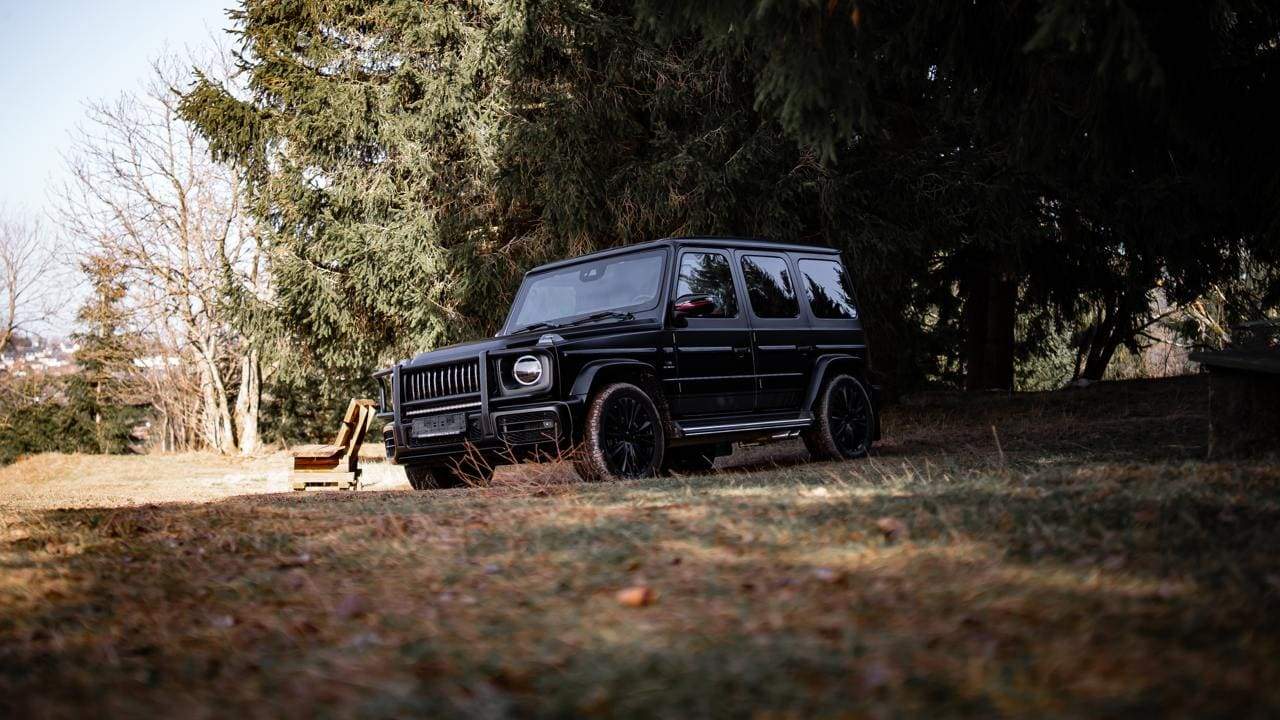

Exterior of an armoured SUV based on Mercedes G-63

All windows can be operable
Radiator guard
Full protection of the engine compartment
Police siren, communication equipment, winch

Engineering & Technologie

Gepanzerte Kapsel

Das Design ist vollständig zertifiziert und als Gesamtsystem getestet (nicht nur einzelne Paneele).
Aus einer durchgehenden Panzerstahlplatte gefertigt.
Alle kritischen Bereiche, einschließlich Boden und Dach, sind geschützt.
Vollständig abgedichtet — keine Schwachstellen.
Lasergeschweißte oder überlappende Verbindungen.

Glas

Die Verglasung ist 80 mm stark und bietet Schutz gemäß VPAM APR 2006 (Stufe 10 / STANAG 3). Alle Scheiben sind mehrschichtig, einschließlich splitterhemmendem Polycarbonat, und gewährleisten maximale Sicht sowie Schutz ohne Verzerrungen. Unser Verklebungsprozess sorgt für eine vollständige Haftung am Rahmen und schließt Spaltbildungen aus.

Räder

Ausgestattet mit Runflat-Reifen, die auch nach vollständigem Druckverlust funktionsfähig bleiben. In Kombination mit verstärkten Felgen und Einsätzen ermöglichen diese Systeme eine Weiterfahrt von bis zu 50 km mit 80 km/h selbst bei völlig plattem Reifen.

Aufgerüstetes Fahrwerk und Bremssystem

Fahrwerk und Bremsanlage sind vollständig aufgerüstet, um das erhöhte Gewicht der Panzerung zu tragen, ohne die Fahrqualität zu beeinträchtigen. Komponenten werden neu kalibriert oder ersetzt und gewährleisten optimale Leistung und Langlebigkeit unter Belastung. Die verbesserten Systeme sorgen für Sicherheit selbst bei Ausweichmanövern.

An armored vehicle based on Mercedes G 63 fully represents the philosophy of our company - safety not at the expense of comfort

Acceleration of an armored vehicle based on Mercedes G 63

Interior of an armored vehicle based on Mercedes G 63
